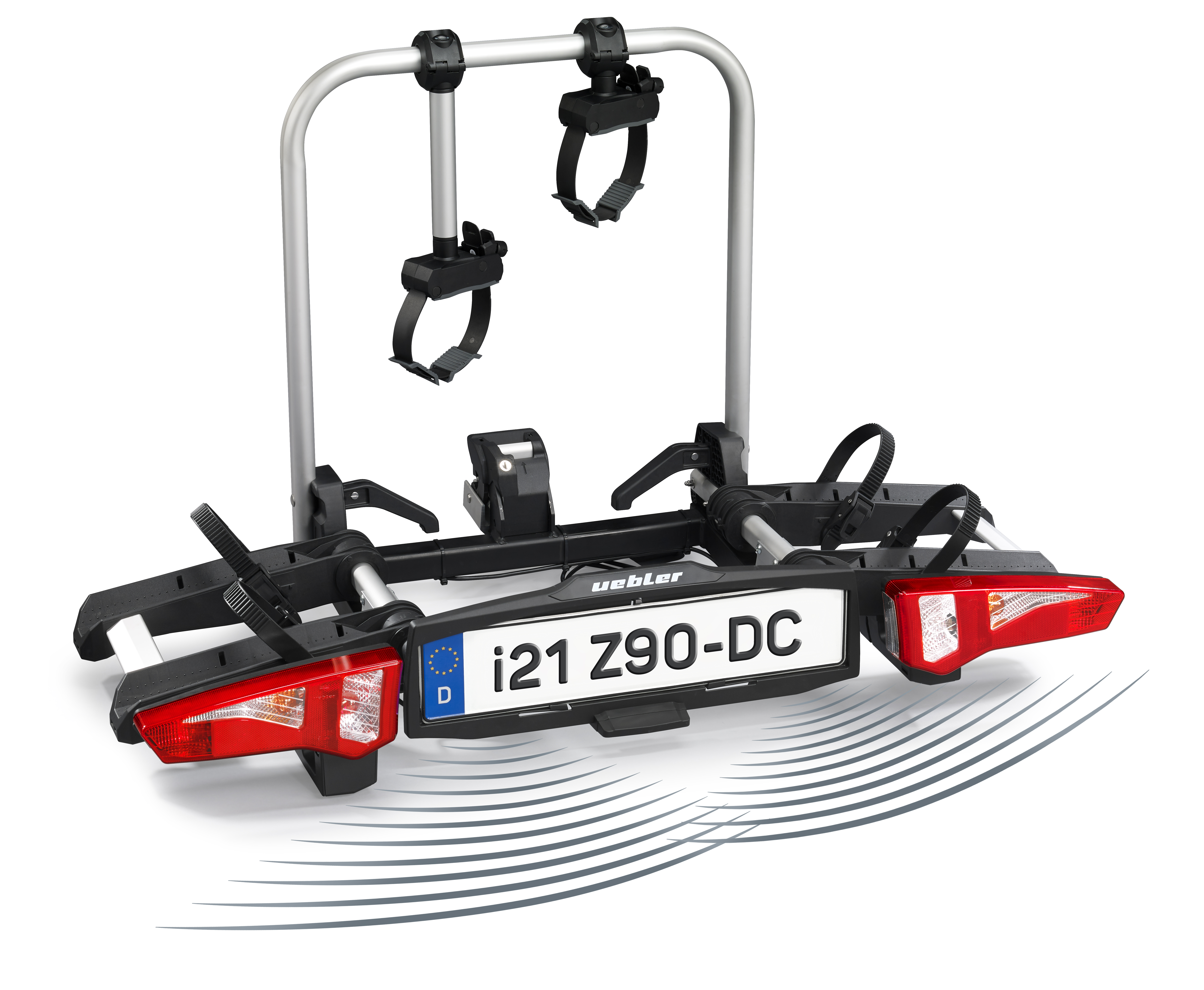

Uebler i21 Z90‑DC towbar bike carrier for 2 bicycles – with parking assistance

At a glance

- For 2 bikes, including e-bikes
- Can be folded down 90°, even with bikes
- Foldable - small storage size
- Tool-free assembly (patented IQ quick-release fastener)
- Extra wide wheel rails up to 3″ (4.5″ optional)
- Integrated parking aid (DC system)
- Integrated anti-theft device
- Own weight 13.5 kg
- Made in Germany

Product description

The Uebler i21 Z90-DC is a compact and particularly lightweight hitch carrier for two bikes - also suitable for e-bikes. Thanks to the patented, leverless IQ quick-release fastener, the carrier can be mounted quickly, safely and effortlessly on the trailer coupling.
The generous 90° folding angle allows easy access to the trunk, even in vehicles with a large tailgate.
The integrated DC system with parking aid supports maneuvering and increases ease of use in everyday life. Removable spacers, wide wheel rails and the foldable design also ensure easy handling and space-saving storage. A high-quality product "Made in Germany".

Additional functions

- DC system with parking aid to assist with parking
- Patented, removable spacers with one-hand operation
- Ratchet system for securely fastening the bikes
- Quick-release lever for securing the wide carrier frame
- Foldable wheel rail and light unit
- Convenient folding via foot lever
- Keyed alike anti-theft device for carrier and bikes

Technical data

- Item number: 18110-DC
- Dimensions: 119 × 72 × 64 cm

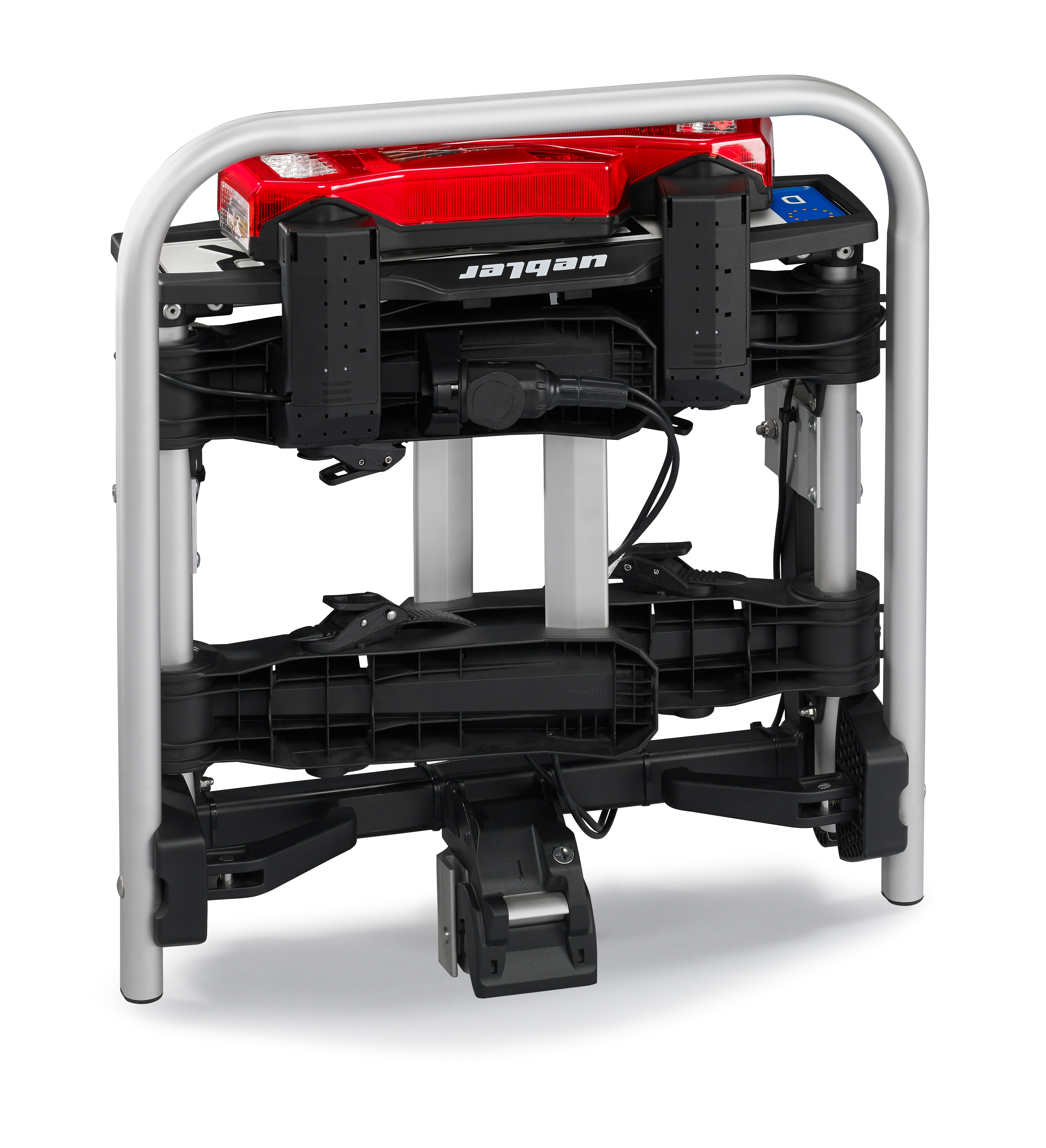

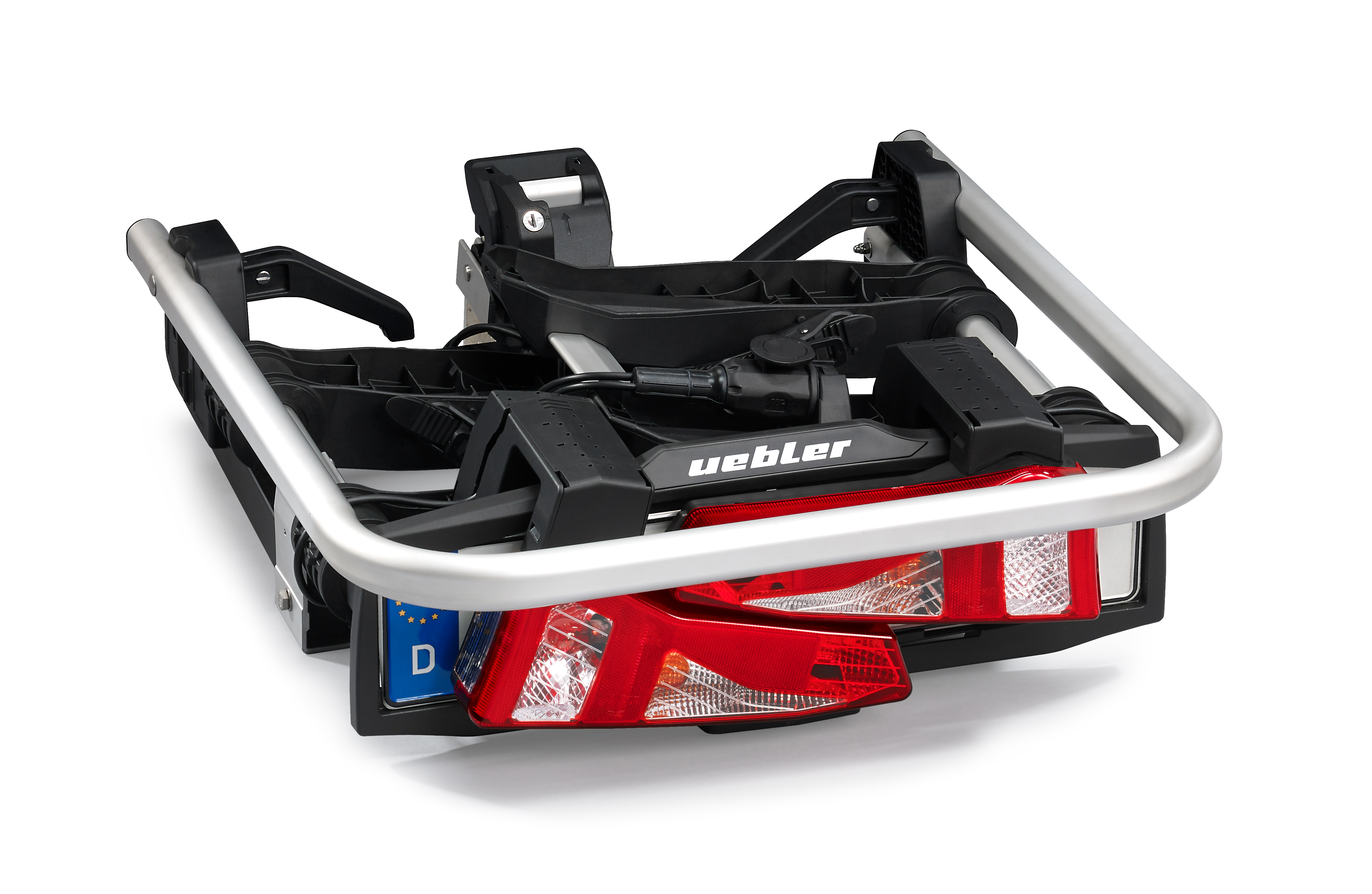

- Dimensions (folded): 61 × 20.5 × 69 cm
- Weight: 13.5 kg
- Maximum load: 60 kg
- Load per wheel rail: max. 30 kg
- Max. Bicycle center distance: 130 cm
- Folding angle: 90
- Rail spacing: 240 mm
- Distance between ball head and first wheel rail: 20 cm
- Assembly height of lock (ball head lock): 73 mm
- Suitable frame shapes:
- Round tube up to 115 mm
- Rectangular tube up to 120 × 80 mm
- Square tube up to 95 × 95 mm
- Tire width:
- up to 3″ (approx. 7.6 cm)
- up to 4.5″ (approx. 11.5 cm) with optional toothed belt conversion kit
- Lockable: Yes
- Carrier lockable: Yes
- EuroBE / TÜV / DEKRA approval: Yes

Mounting & operation

- Tool-free mounting on the trailer coupling
- Leverless, patented IQ quick-release fastener
- DC system for additional support when parking
- Convenient folding down via foot lever
- Space-saving storage thanks to folding mechanism

Quality & origin

- High quality product
- Made in Germany
