Uebler i21 Z90 towbar bike carrier for 2 bicycles – without parking assistance

At a glance

- For 2 bikes, including e-bikes
- Can be folded down 90°, even with bikes

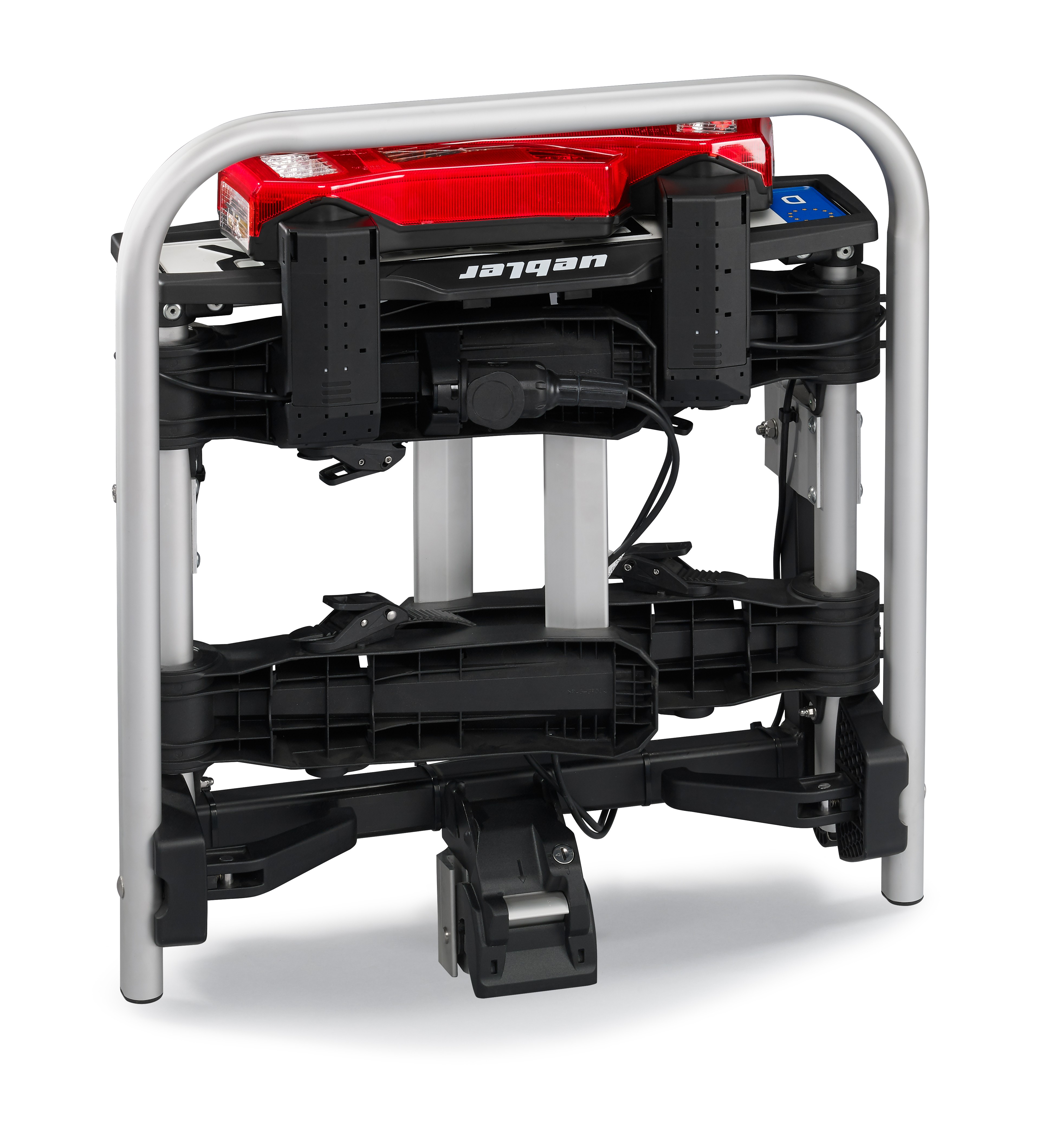

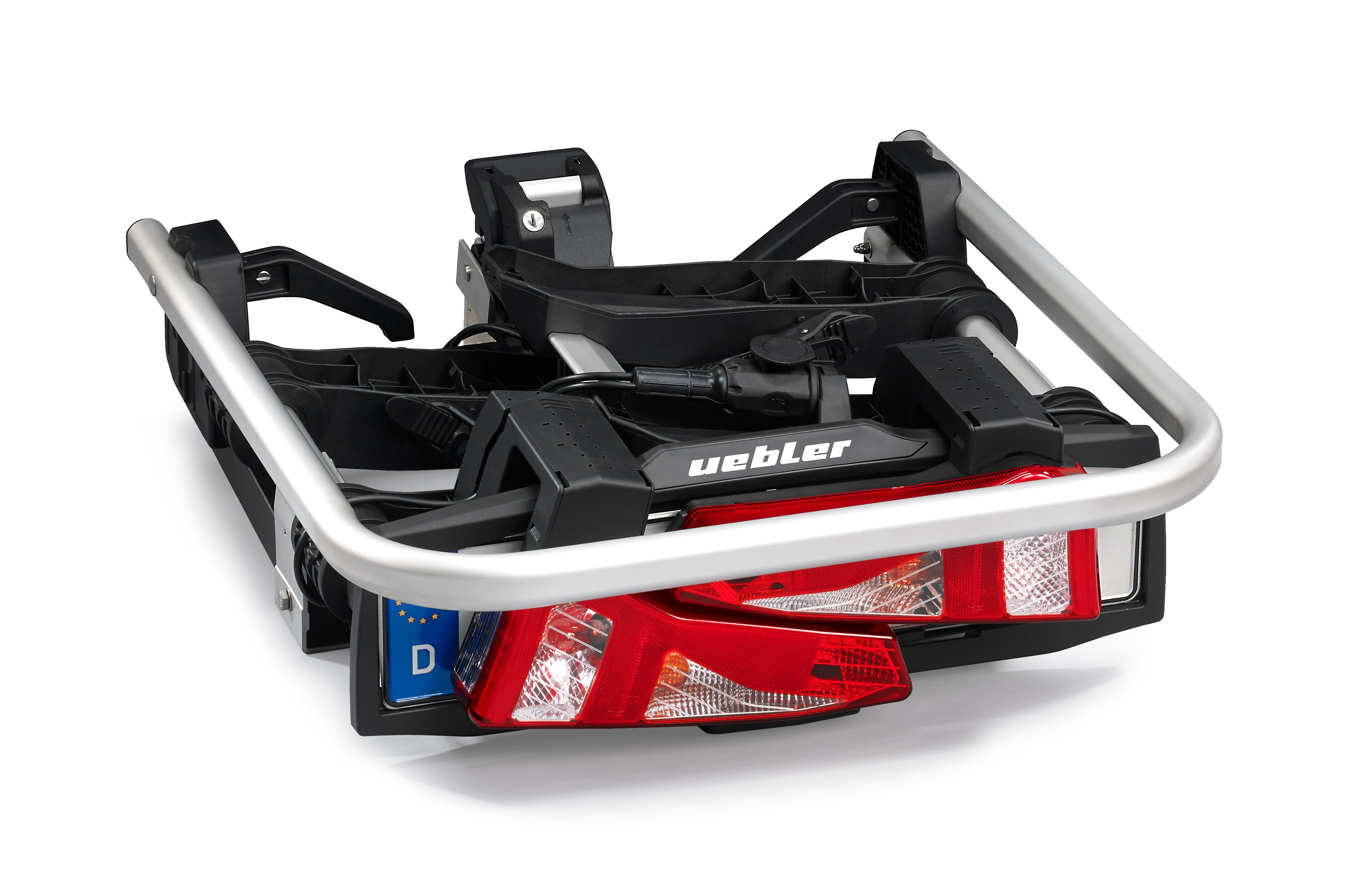

- Foldable - small storage size
- Tool-free assembly (patented IQ quick-release fastener)
- Extra wide wheel rails up to 3″ (4.5″ optional)
- Integrated anti-theft device
- Without parking aid
- Own weight 13.5 kg
- Made in Germany

Product description

The Uebler i21 Z90 is a compact and particularly lightweight towbar carrier for two bikes - also suitable for e-bikes. Thanks to the patented, leverless IQ quick-release fastener, it can be mounted quickly, safely and effortlessly directly on the trailer coupling.
The generous 90° folding angle enables particularly convenient access to the luggage compartment, even in vehicles with a large tailgate. Wide wheel rails, removable spacers and the foldable design ensure a high level of comfort and space-saving storage. A high-quality product "Made in Germany".

Additional functions

- Patented, removable spacers with one-hand operation
- Ratchet system for securely fastening the bikes
- Quick-release lever for securing the wide carrier frame
- Foldable wheel rail and light unit
- Convenient folding via foot lever
- Keyed alike anti-theft device for carrier and bikes

Technical data

- Item number: 18110
- Dimensions: 119 × 72 × 64 cm
- Dimensions (folded): 61 × 20.5 × 69 cm
- Weight: 13.5 kg
- Maximum load: 60 kg
- Load per wheel rail: max. 30 kg
- Max. Bicycle center distance: 130 cm
- Folding angle: 90
- Rail spacing: 240 mm
- Distance between ball head and first wheel rail: 20 cm
- Assembly height of lock (ball head lock): 73 mm
- Suitable frame shapes:
- Round tube up to 115 mm
- Rectangular tube up to 120 × 80 mm
- Square tube up to 95 × 95 mm
- Tire width:
- up to 3″ (approx. 7.6 cm)
- up to 4.5″ (approx. 11.5 cm) with optional toothed belt conversion kit
- Lockable: Yes
- Carrier lockable: Yes
- EuroBE / TÜV / DEKRA approval: Yes

Mounting & operation

- Tool-free mounting on the trailer coupling
- Leverless, patented IQ quick-release fastener
- Easy handling due to low weight
- Convenient folding down via foot lever
- Space-saving storage thanks to folding mechanism

Assembly instructions (PDF)

Quality & origin

- High quality product
- Made in Germany

Documents (PDF)

Technical data sheet (PDF)
